In Fuzhou, Jiangxi Province, at the Fubei Industrial Park of the Linchuan Economic Development Zone, a special operations fire station is being completed. Built to special operations fire station standards, the project covers a total area of 8094.40 square meters. As the frontline emergency rescue position for special operations forces, the reliability of the fire water supply system directly determines whether the fire station can function effectively in critical moments. Kaiquan customized an above-ground integrated box-pump fire station for the project, balancing the standardized layout of the camp with essential fire protection needs. It has now been delivered and put into use.
Three Core Requirements of Fire Pump Stations
The fire water supply system of a special operations fire station faces several practical constraints:
First, space constraints. The camp site needs to accommodate multiple functions such as training towers, operational buildings, parking garages, and fire water tanks. Traditional concrete pump houses occupy large areas and have long construction periods, making them difficult to accommodate within limited land.
Second, fire safety compliance. The fire pump station must meet national fire safety standards; individual pumps, cabinets, and complete sets of equipment must all obtain fire safety certification certificates, ensuring a basis for fire safety acceptance.
Third, maintenance efficiency. Firefighting equipment requires regular inspections, but traditional pump stations suffer from dispersed equipment and complex piping, making inspections time-consuming, labor-intensive, and prone to delays in anomaly detection.
Integrated Solution: Factory Prefabrication, On-Site Assembly

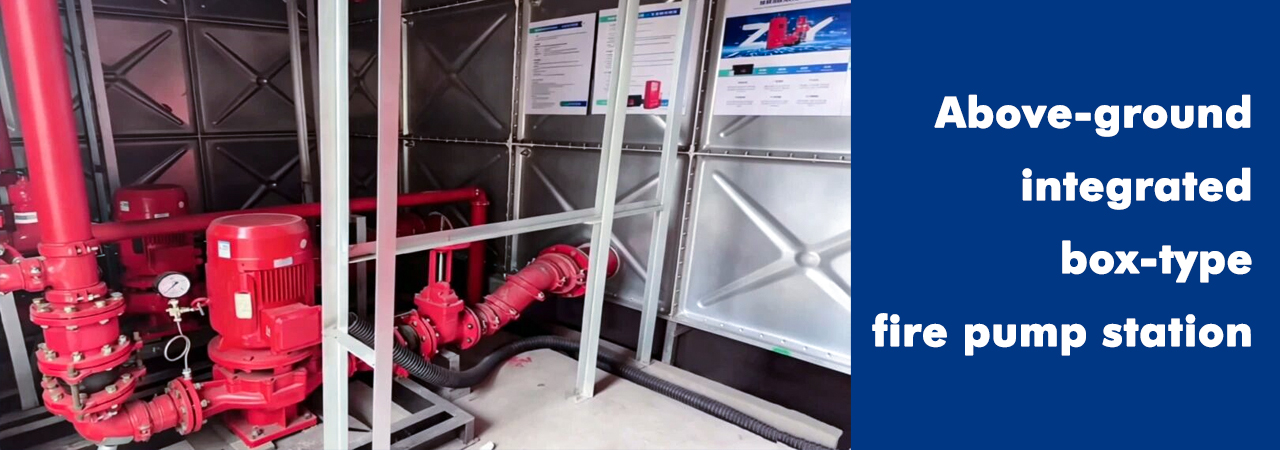

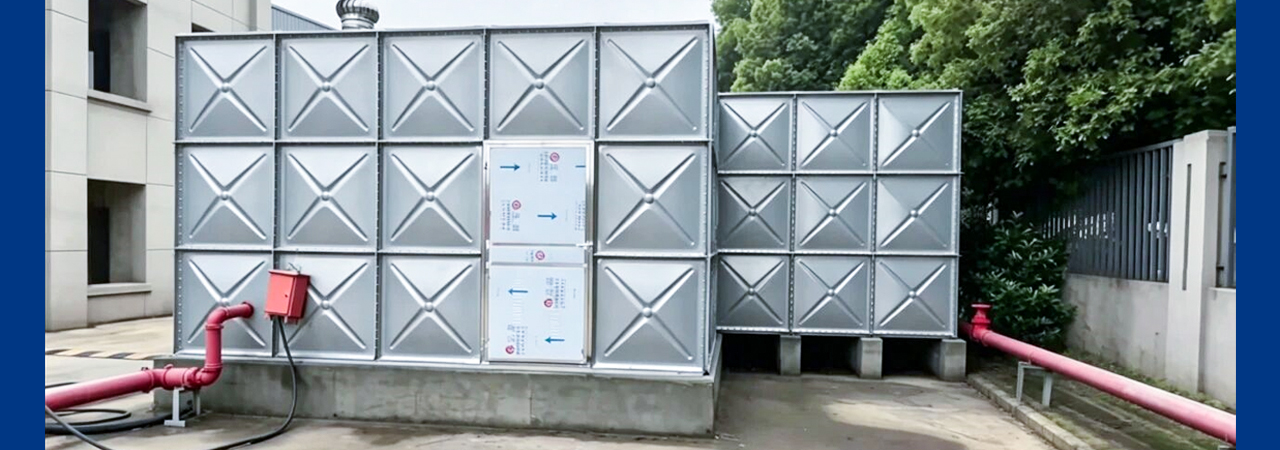

The above-ground integrated box-type fire pump station provided by Kaiquan adopts an integrated design approach, concentrating fire water tanks, pump units, control cabinets, piping, and pressure stabilization systems within a single enclosure. Three key features are noteworthy:
High Integration: Previously dispersed fire water tanks, pumps, control cabinets, valves, and instruments are integrated into a compact structure, without increasing costs for the client. It integrates overload-free fire pumps, inlet and outlet piping, instruments, flow measurement circuits, etc., highly integrating the previously scattered components required by regulations.
High Construction Efficiency: Utilizing a factory prefabrication model, all core equipment is installed and commissioned in the factory, requiring only bolt assembly on-site. Compared to traditional concrete pump stations, this significantly shortens the installation cycle and minimizes disruption to the camp’s normal operations.
Convenient Maintenance: With all core equipment concentrated within the enclosure, inspection personnel no longer need to move between dispersed equipment rooms, greatly improving maintenance efficiency.
Single-Pump Single-Cabinet Certification + IoT Platform
Regarding fire safety compliance, Kaiquan’s unit adopts a single-pump single-cabinet configuration. Each pump and control cabinet has obtained fire safety certification, fully complying with regulations and meeting fire safety acceptance and inspection requirements.
In terms of intelligent operation and maintenance, the unit is equipped with Kaiquan’s IoT platform, which can monitor the pressure of the fire pipeline network and the water level of the fire water tank in real time, and monitor the fire pumps continuously. Traditional fire pump room management suffers from pain points such as difficult inspections, cumbersome record keeping, and delayed anomaly detection. Kaiquan’s solution, through IoT technology, transforms the fire protection system’s prevention from passive to proactive—abnormal liquid levels and pressure fluctuations trigger automatic alarms, and managers can monitor equipment status in real time via their mobile phones.
The Fubei Industrial Park Special Service Fire Station is a crucial node in the Linchuan District’s fire and rescue system. The park houses chemical enterprises, which impose specific requirements on the emergency response to hazardous chemicals. The reliability of the fire water supply system directly affects the efficiency of emergency rescue response.
Kaiquan integrated fire pump station combines integrated design, prefabricated construction, and IoT active monitoring—providing a compliant, efficient, and remotely operable water supply guarantee solution for such critical scenarios.
